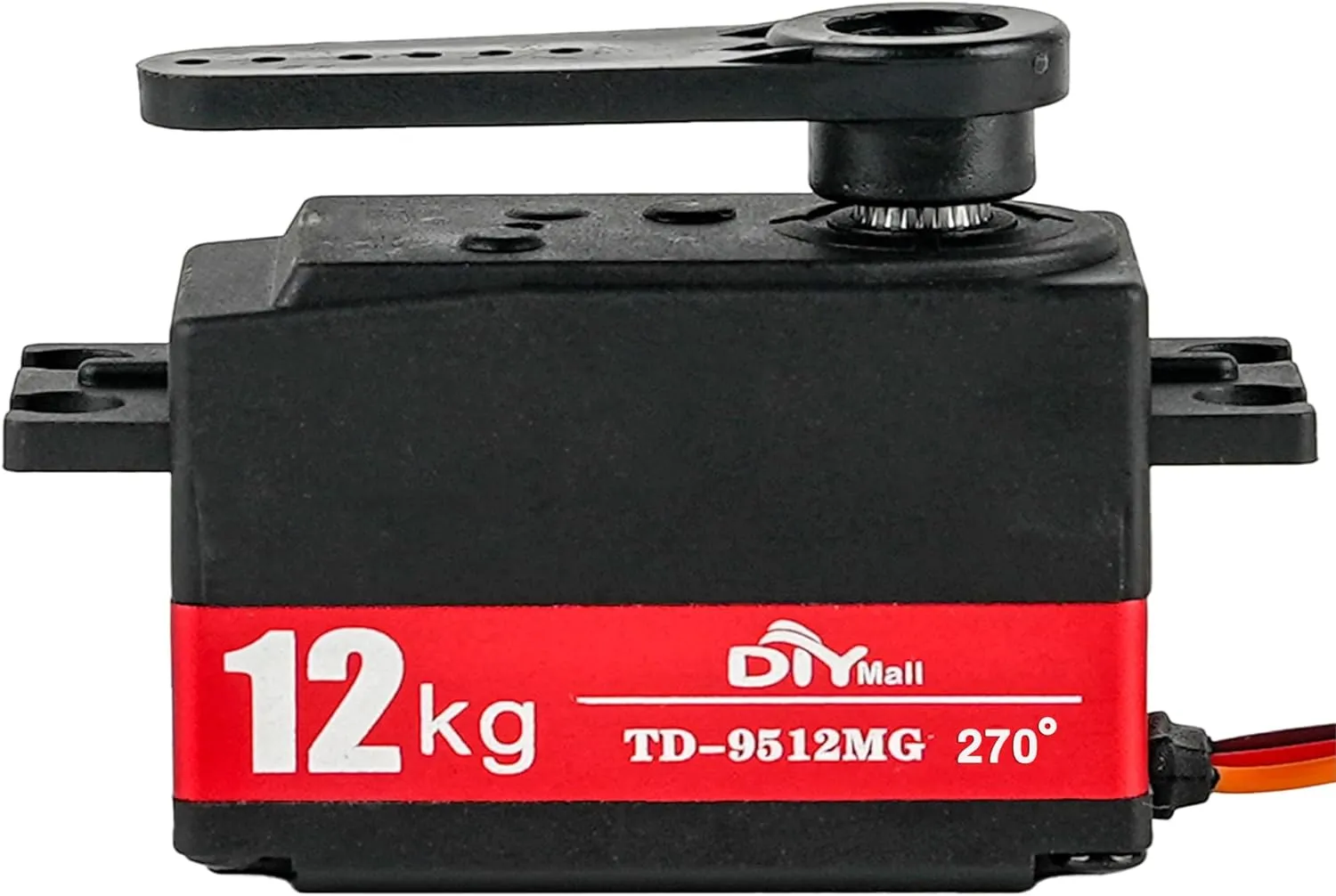

Wishiot TD-9512 digtal servo high speed waterproof servo low profile servo short body servo

●High-speed rotary servo: 7.V speed up to 0.09sec/60°.

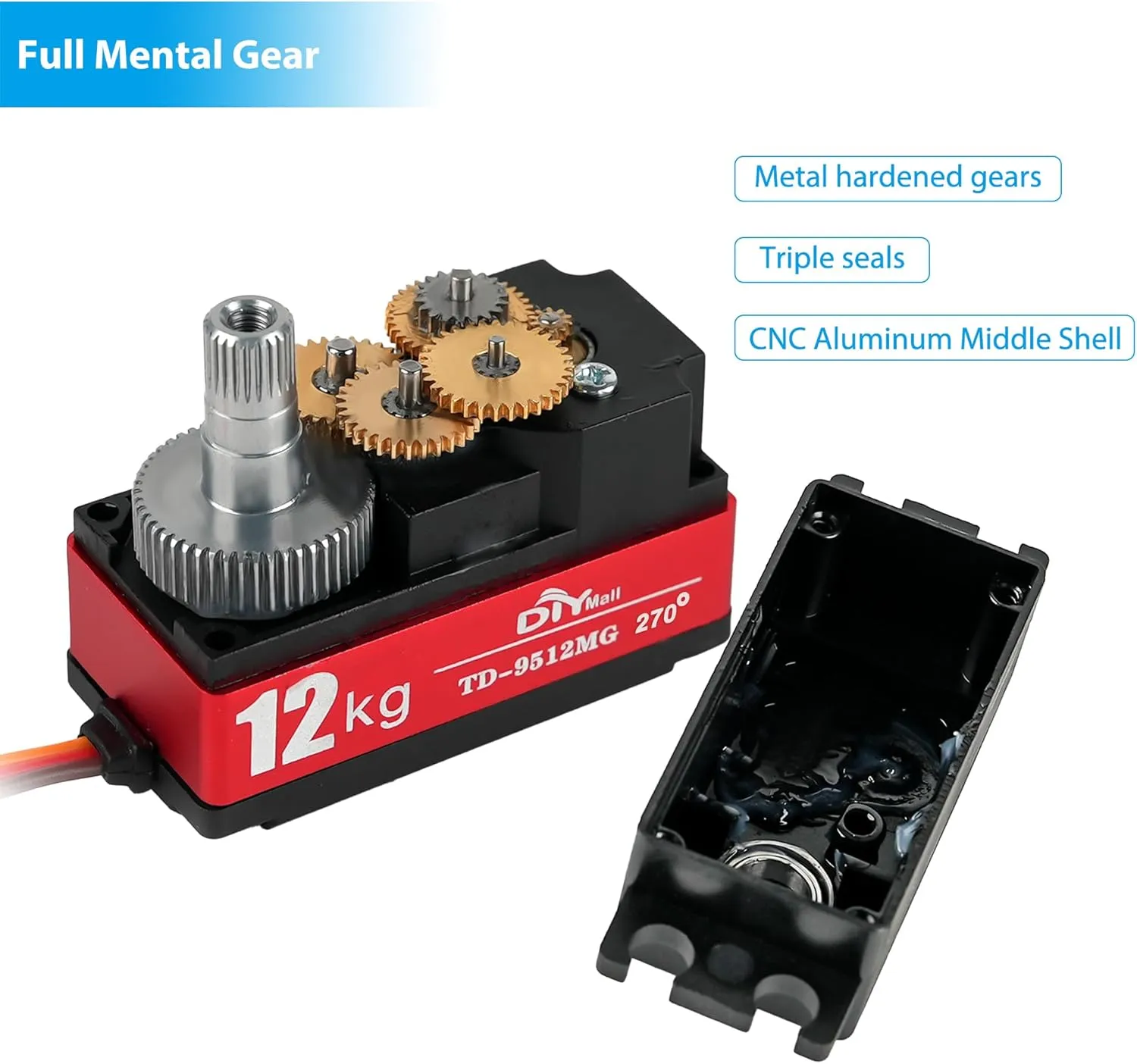

●Full metal hardened gears, double ball bearings, high precision, high sensitivity, stability and low noise.
●High and low voltage 7.4V, suitable for 1/10 1/8 electric, flat run, drift car.
●270 degree angle controllable (when 1000~2000usec)

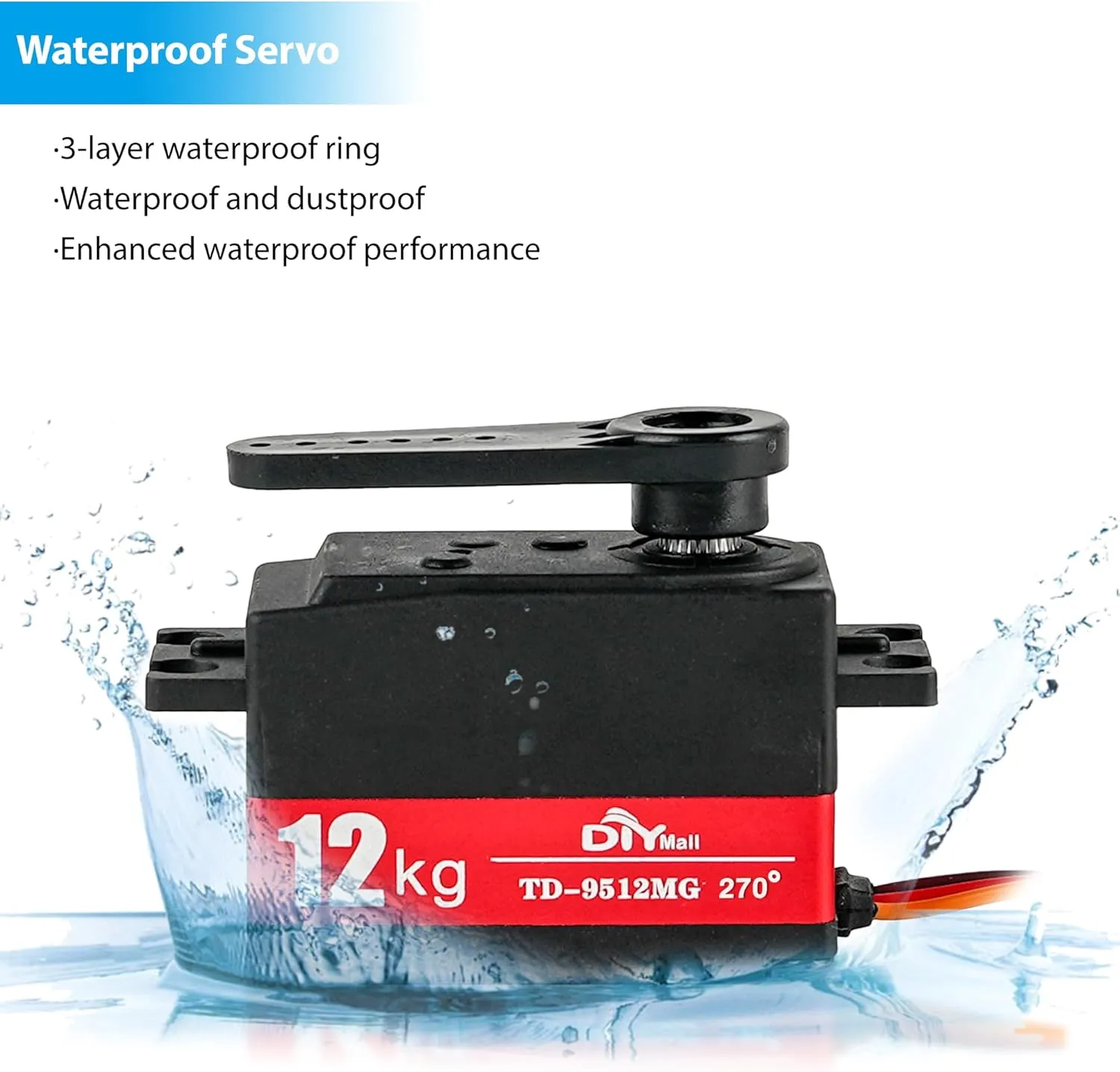

●Waterproof and dustproof with 3-layer waterproof ring to strengthen the waterproof performance.

Scenarios & Applications 1. RC Vehicles For RC Touring & Drift Cars – Provides precise steering with a lower center of gravity. For RC Buggy & Off-Road Vehicles – Works well for steering in 1/10 and some 1/8 scale cars. For RC Rock Crawlers – Compact design allows for better weight distribution and clearance. 2. Robotics For Humanoid & Quadruped Robots – Fits into small spaces without compromising torque. For Robotic Arms & Grippers – Offers high torque for controlled and smooth movement. 3. RC Planes & Helicopters For Flap & Aileron Control – Useful in high-speed aircraft for precision movements. For Retractable Landing Gear – Strong enough for small-to-medium RC planes. Product Model: TD-9512MG

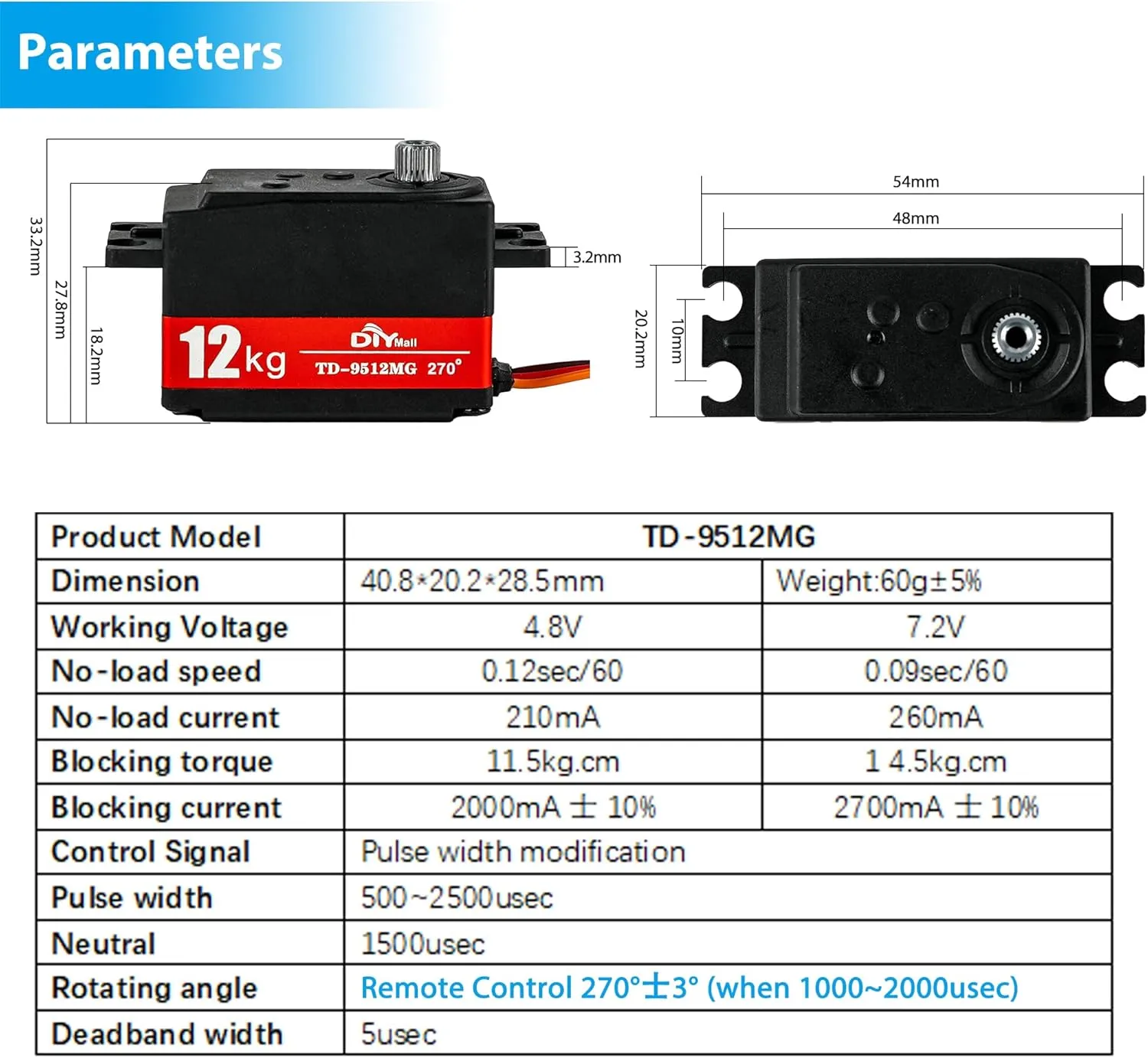

Dimension: 40.8*20.2*28.5mm
Weight:60g±5%
No-load speed: 0.12sec/[email protected] / 0.09sec/[email protected]
No-load current: [email protected] / [email protected]
Blocking torque: [email protected] / 1 [email protected]
Blocking current: 2000mA士10%@4.8V / 2700mA士10%@7.2V
Control Signal: Pulse width modification
Pulse width: 500~2500usec
Neutral: 1500usec
Rotating angle: 270°士3°(when 1000~2000usec)
Deadband width: 5usec
Cable length:30CM

Yellow-signal wire
Red-positive wire
Brown-negative wire

Package list:
1 x TD-951212kg Low Profile Servo 270 degree Remote Control
1 x Accessories bag
