- Versatile: Compatible with drones, helicopters, airplanes, cars, and boats Compatible with diverse applications.
- Compact: Sleek and lightweight design ensures easy integration into various models.
- User-friendly: Intuitive setup process allows Compatible with quick installation and .
- Reliable: Designed Compatible with stable performance and consistent control across various environments.
- Advanced: Features cutting- technology Compatible with enhanced maneuverability and handling.

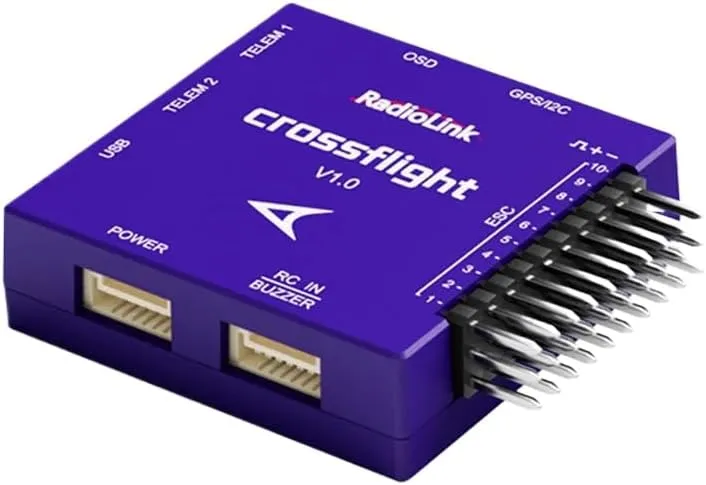

Parameters:
Connector: JST GH1.25 Connector
PWM Output: 10 PWM Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Input: PPM/SBUS
RSSI Output: Do not support
OSD Module: OSD Module Integrated
ESC Protocol: PWM
DSHOT Protocol: Do not support
ONESHOT Protocol: Do not support
Neopix : Support
Gripper Function: Support
RTK:Support
USB Voltage: 5V±0.3V
Servo Voltage: Not applicable
Operating Temperature: -40~80℃
Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat
Dimention: 39.7*39.7*13mm (1.56"*1.56"*0.51")
Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
Power Module Specifications:
Input Voltage: 2-12S
Input Current: 90A
Output Voltage: 5.1V
Output Current(BEC): 2.5A
Input Current(connect to one ESC only): 20A
Hardware Specification:Processor: HC32F4A0PITBGyro: ICM42670Compass: VCM5883Barometer: LPS22HBFRAM: Without , use the internal flash to store parameters, 2617 waypoints Compatible with multi-copters, and 2623 waypoints Compatible with airplanes
