- Delivers up to 185 kg·cm stall torque at 25.2V making it good for high-load applications
- Fully waterproof with IP67 rating ideal for outdoor or harsh environments
- Wide voltage compatibility from 19.2V to 25.2V ensures stable performance across different systems
- Compact yet powerful design fits into large RC models without compromising strength
- Good for outdoor automation systems where precision and durability are key under varying temperatures

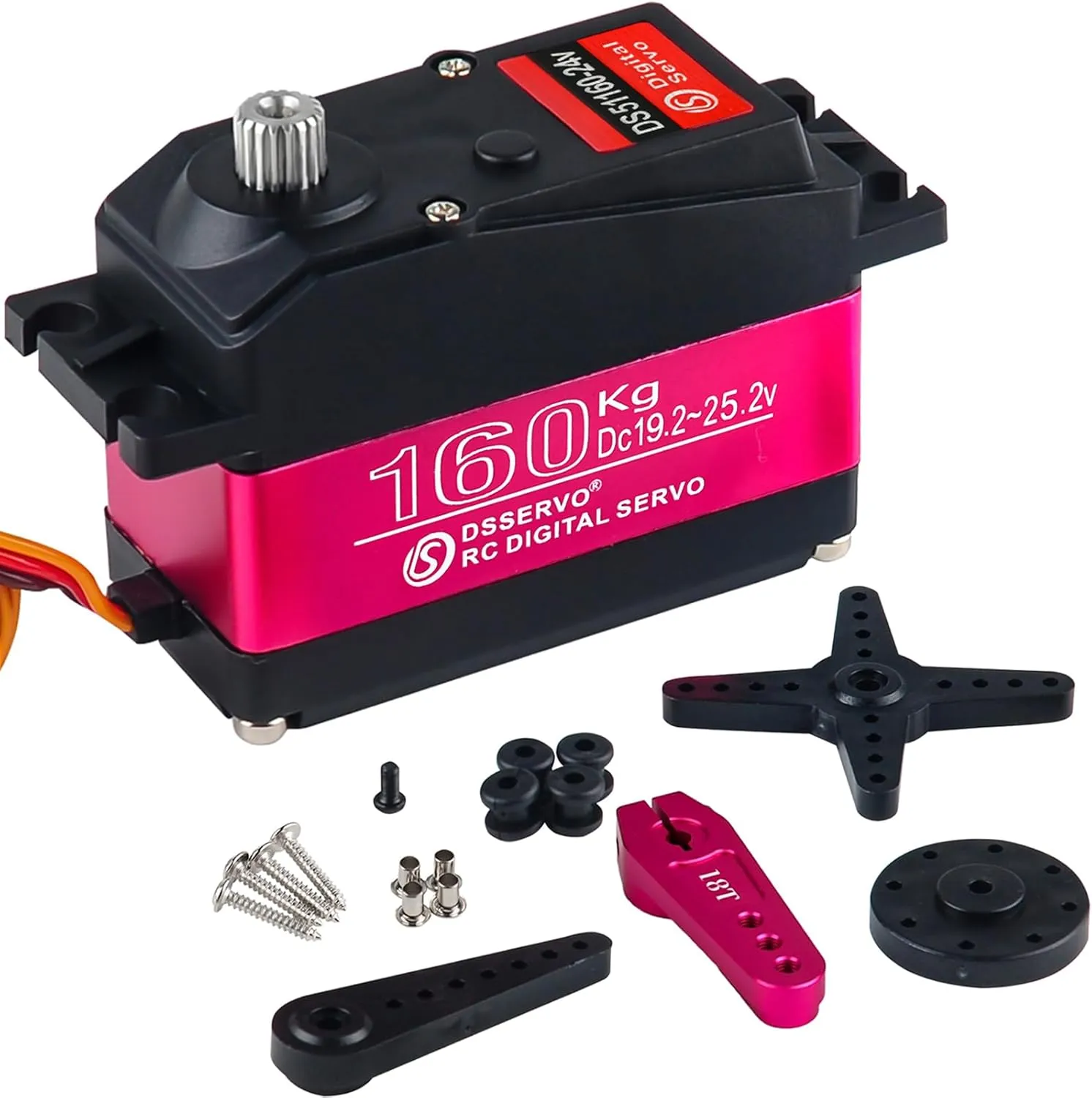

The 160KG servo motor is ideal for high-load applications such as heavy-duty robotics, large RC models, Industrial Automation, Agricultural or Construction Equipment, Custom Engineering Projects, industrial machinery, and outdoor automation systems.
1. Environmental Conditions
Storage Temp. Range: -30℃ to 80℃
Operating Temp. Range: -15℃ to 70℃
Operating Voltage Range: 19.2V to 25.2V
2. Mechanical Specifications
Size: 65 × 30 × 48 mm
Weight: 175g
Gear Ratio: 357
Bearing: Double bearing
Connector Wire: 300 ± 5 mm
Motor: 3-pole(s)
Waterproof: IP67
3. Electrical Specifications
Idle Current (at stopped): [email protected] , 5mA@24V , [email protected]
Operating Speed (at no load): 0.24 s/60°@19.2V , 0.21 s/60°@24V , 0.19 s/60°@25.2V
Stall Torque (at locked): 155 kg·[email protected] , 170 kg·cm@24V , 185 kg·[email protected]
Stall Current (at locked): [email protected] , 4.2A@24V , [email protected]
4. Control Specifications
Control System: PWM (Pulse Width Modification)
Pulse Width Range: 500 ~ 2500 µsec
Neutral Position: 1500 µsec
Running Degree: 180° or 270° (when 500 ~ 2500 µsec)
Dead Band Width: 3 µsec
Operating Frequency: 50 ~ 330 Hz
Rotating Direction: Counterclockwise (when 500 ~ 2500 µsec)
