- The Flysky FS-SR8 receiver supports two -way binding and one-way binding. The transmitter will display the information returned from the receiver after the two-way binding is completed.
- Flysky FS-SR8 based on ANT protocol is a 8-channel receiver with two external antennas and bidirectional transmission. It has a compact design.
- The design of the receiver is easily to install, and it adapts a variety of models.Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, engineering vehicles, nest boats, robots or cars
- Compatible Transmitters: FS-ST8 (Adapts transmitters with ANT protocol )
- Input Power: 3.5~9V/DC;Data Output: PWM/PPM/i-BUS/S.BUS
Specifications:

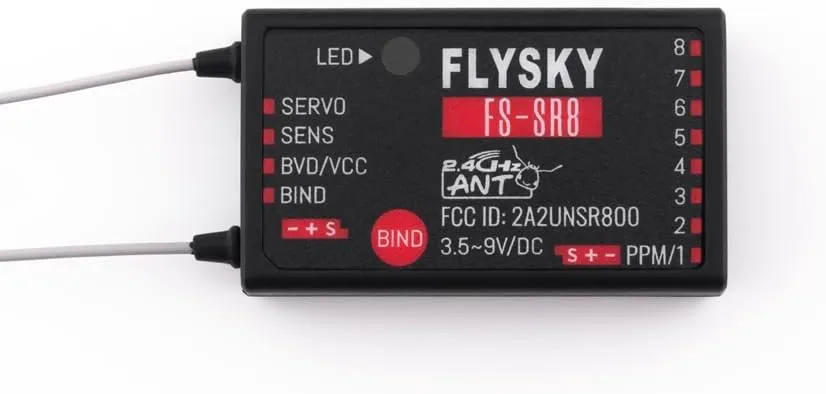

Product Name: FS-SR8
Compatible Transmitters: FS-ST8 (Adapts transmitters with ANT protocol )
Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, engineering vehicles, nest boats, robots or cars
PWM Channels: 8
RF: 2.4GHz ISM
Maximum Power: <20dBm (e.i.r.p.) （EU）
2.4G Protocol: ANT
Resolution: 4096
Antenna: Two antennas
Distance:> 1000m (Air distance without interference)
Input Power: 3.5~9V/DC
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
Temperature Range: -10℃ ~ 60℃
Humidity Limit: 20% ~ 95%
Dimensions: 44.8*26.6*11.3mm
Weight: 10g
Certifications: CE, FCC ID: 2A2UNSR800
Package included:
1x FS-SR8 Receiver
