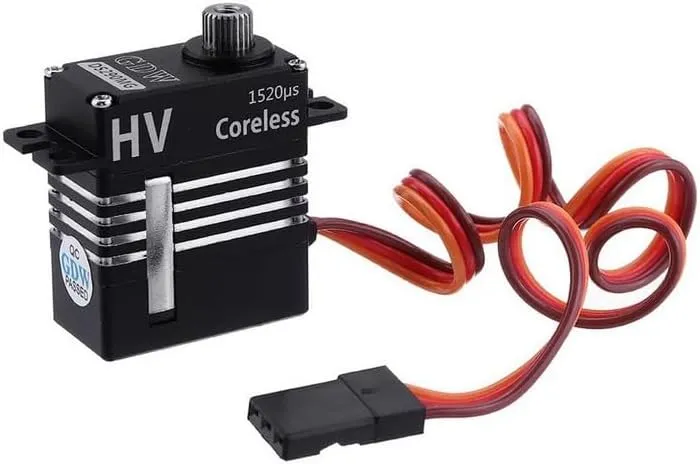

- Enhance your 380-420 size electronics with the high-performance GDW DS290MG 5.6Kg Micro Metal HV Digital Cyclic Coreless Servo, a powerful solution for serious rc helicopter servo enthusiasts.
- Designed with a compact footprint (23x12x27.3mm) and weighing just 21g, this GDW servo offers a perfect balance of speed, strength, and efficiency for your heli's cyclic system.
- Operating at a high-frequency rate of 1520us/333Hz and powered by a precise coreless motor, it delivers outstanding response and control. With lightning-fast speeds of 0.052sec/60° at 8.4V and a torque of up to 5.6Kg.cm, it’s engineered for fast and smooth maneuvering during intense 3D flights.
- Built to last, this full size servo features durable metal gears and a 25T horn gear spline for added compatibility and reliability.
- Whether you're upgrading your electronics or building a competitive setup, the DS290MG is a must-have for high-speed precision in 380-420 size helicopter platforms.
*** Specifications:
Working Frequency: 1520us/333Hz
Operating voltage range: 4.8V – 8.4V
Motor: Coreless
Dimensions: 23mm (32mm) x 12mm x 27.3mm
Motor type: Coreless motor 12mm
Horn gear spline: 25T ⌀ 4.9mm
Wire diameter: 0.15mm2
Number of wire cores: 30
Weight: 21g ± 1g
Speed:
0.052sec/60 @ 8.4V
0.065sec/60 @ 7.4V
0.072sec/60 @ 6.0V
Torque:
5.6Kg/cm @ 8.4V
4.8Kg/cm 7.4V
4.1Kg/cm 6.0V
*** Package Includes:
1 x GDW DS290MG Digital Servo
1 x Servo horn set
