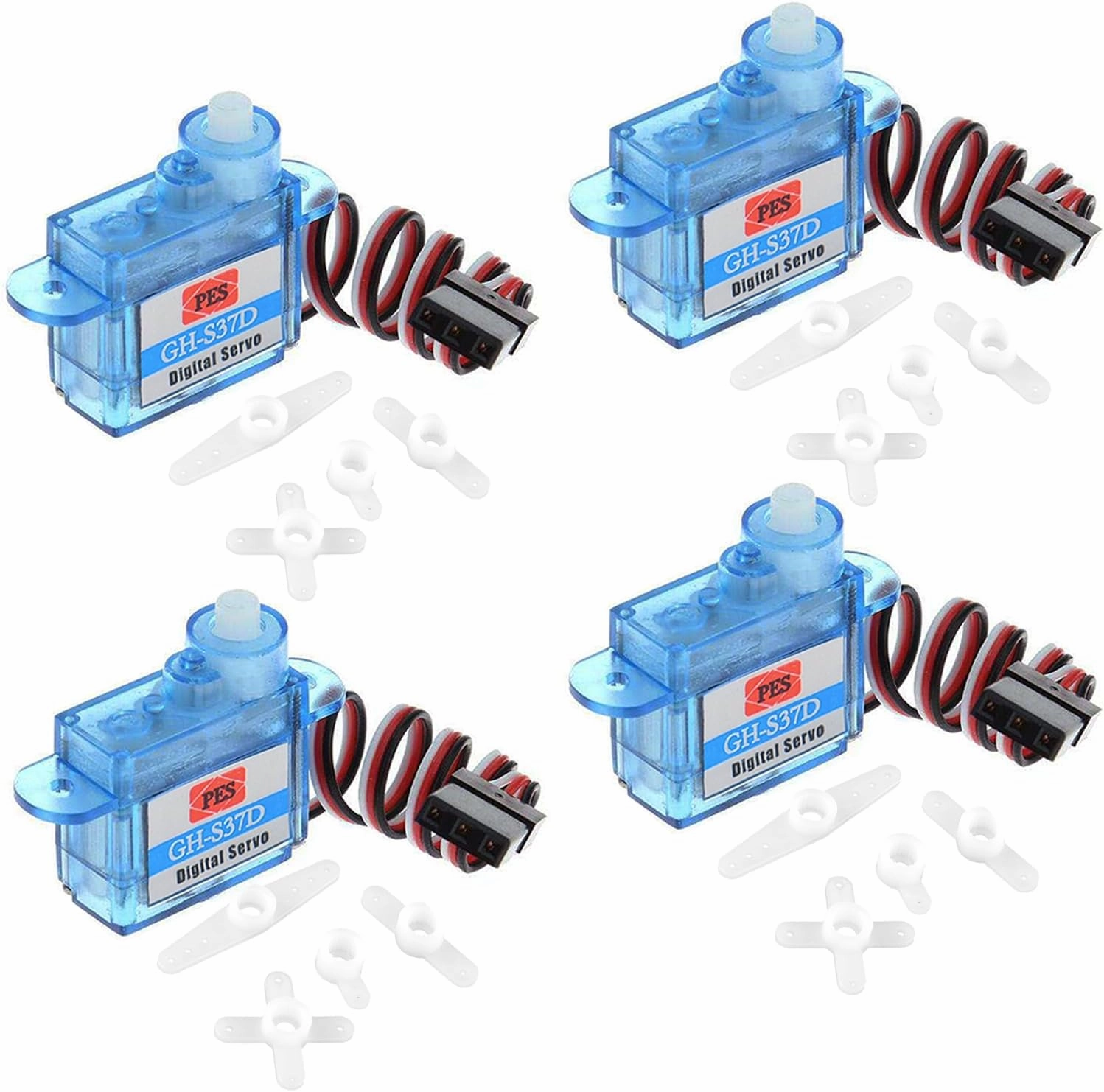

- GH-S37D Servo - 3.7g servo motor for remote control helicopters, micro robot, robot arm and boats. Compatible with all types of R/C Toys, and also enables electronics DIY projects to work in harmony with Arduino and Raspberry Pi
- Ultra-Light Micro Servo - Weighs only 3.7g, offering excellent performance in a compact size
- High-Performance Torque - Provides 0.6kg/cm torque at 3.6V or 0.8kg/cm at 4.8V, ensuring precise control and stable operation in various RC applications
- Fast Response Time - Operating speed of 0.12 seconds/60° at 3.6V or 0.1 seconds/60° at 4.8V, delivering quick and responsive movements for better control
- Complete Package - Includes a 3-pin power and control cable and mounting hardware, making it easy to install and use in your RC plane, helicopter, or boat
Description:
This is micro servo for RC plane helicopter Boat. It is spuer light, only 3.7g. It comes with a 3-pin power and control cable and mounting hardware.
Specification:
Model: GH-S37D
Servo Type: Digital servo
Operating Voltage : 3.6-4.8V
Torque : 0.6kg/cm (at 3.6V), 0.8kg/cm(at 4.8V)
Operating Speed : 0.12sec/60degree(at 3.6V), 0.1sec/60 degree(at 4.8V)
Operating temperature: 0-60℃
Gear material: Plastic
Control system: Change the pulse width
Pulse Width Range: 900→2100 μsec Operating Travel: 90 degree (1000→2000 μsec)
Dead Band Width : 4usec
Neutral position:1500 μsec
Cable Length: 150mm
Temperature Range : 0~ 60℃
Weight: 3.7g
Size: 20x8.75x22mm (0.78x0.34x0.86in)
Package Includes:
4 X 3.7g micro servo
