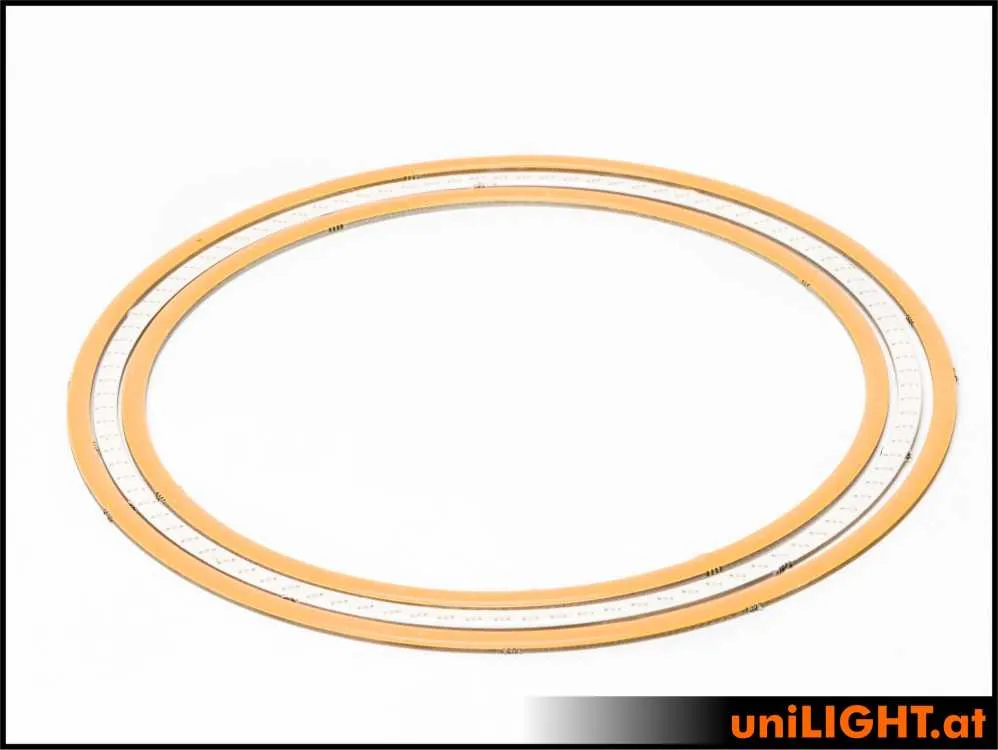

UniLight 171mm Light Afterburner Ring - Orange RINGL-171-OR

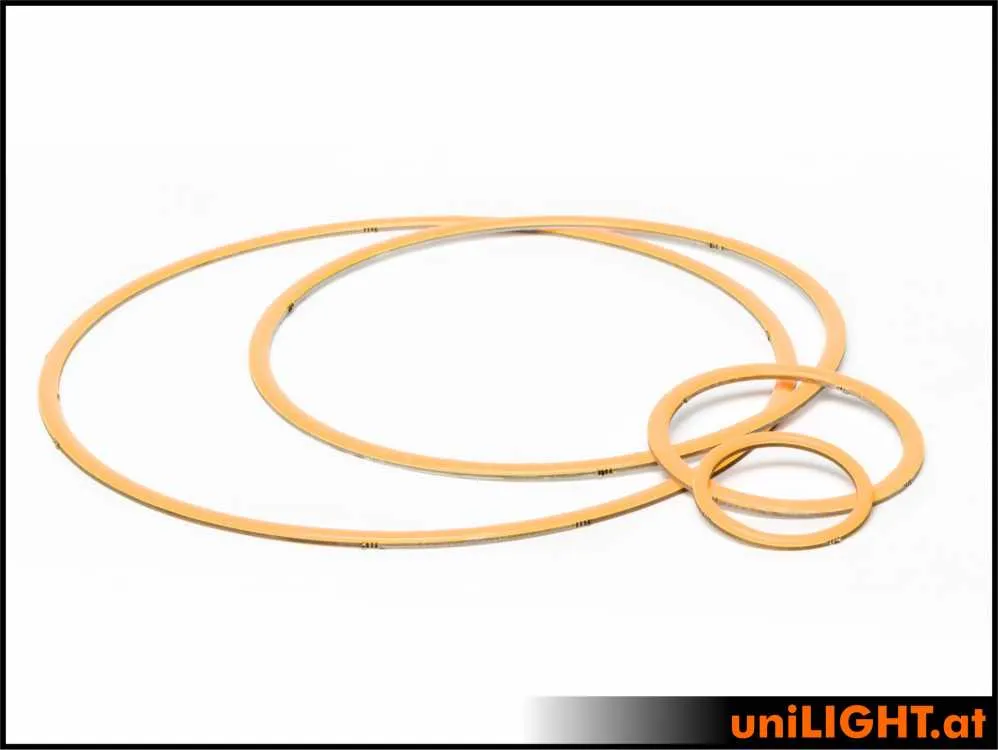

The new generation of extremely lightweight, compact and very efficient afterburner rings. The new rings are based on the current COB LED technology and can be built extremely compact due to the high integration. About 20 different types with only 3 to 4mm width now allow the use in almost every electric or turbine jet or helicopter. Many of the rings can be used together, in orange as well as in blue available to the different effects to enable. Although they do not individually achieve the performance of our high-power afterburner rings, they are also much easier, cheaper and easy to integrate.

Power: ~ 550 lumens
Voltage: 3S / 12V ONLY
Electricity: approx. 0.56 amps
Beam angle: ~ 120 °
Inside dimension: 171mm
Wall width: 4mm
Weight: 6g (without cable)

1 piece, with 0.5m Teflon connection cable pre-assembled for 3S LiPo operation (2S operation is not possible)

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
