- Take your tail control to the next level with the GDW G55 7KG 0.045sec High Speed Metal HV Digital Brushless Mini Tail Servo, a precision-engineered RC helicopter servo built for unmatched speed and accuracy.
- Ideal for electronics upgrades in 650-700 size helicopters and adaptable for 380-420 size electronics, this mini size servo delivers lightning-fast tail response at just 0.045sec/60° and up to 7.0kg.cm torque at 8.4V.
- Designed for demanding applications like SAB505, XL520, ALZRC 500X, and 50E/70E airplanes, the G55 features a high-performance brushless motor housed in a compact 36mm x 15mm x 32mm frame, weighing just 47g.
- Operating at 760µs / 333Hz, it ensures ultra-responsive performance with minimal dead band of only 2µs for precise input control.
- Whether you're into aggressive 3D flight or scale realism, this full size servo provides pro-level results in a miniature footprint. When upgrading your RC helicopter electronics, the GDW G55 is your go-to for speed, power, and reliability.
*** Description:

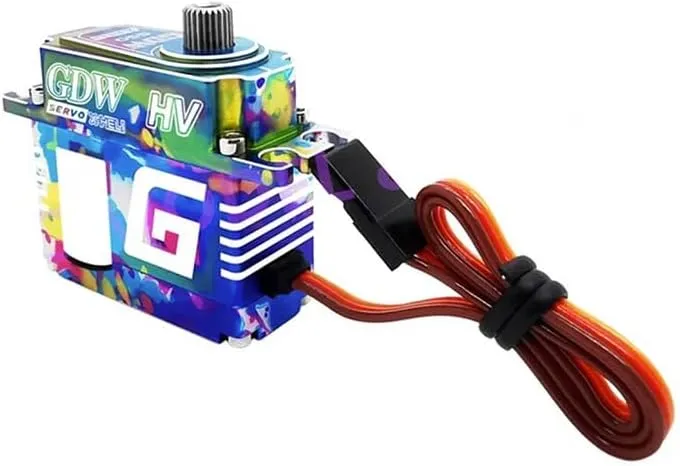

- GDW G55 HV Digital Tail Servo
- Mini Size Servo
- Operating voltage range: 4.8V - 8.4V
- Working frequency: 760µs / 333Hz
- Dimensions: 36mm (48mm) x 15mm x 32mm
- Weight: 47g ± 1g
- Bench test values:
5.0kg.cm/0.06sec/60°@6.0V
6.0kg.cm/0.05sec/60°@7.4V
7.0kg.cm/0.045sec/60°@8.4V
- Dead band: 2µs
- Motor type: Brushless motor 17mm x 15mm
- Horn gear spline: 25T ⌀ 5.9mm
- Wire length: 220mm ± 5mm
- Wire diameter: 0.15mm2
- Number of wire cores: 30
- Application: For SAB505 XL520 ALZRC 500X RC Helicopter, 50E/70E RC Airplane, other RC Models.
